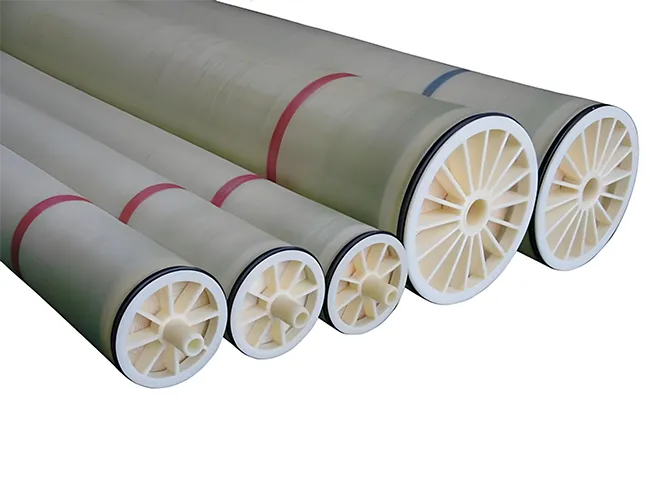

The HQ-RO-FR anti-fouling membrane is a spiral-wound polyamide composite reverse osmosis membrane element. Its unique anti-fouling membrane technology endows it with excellent anti-fouling ability and cleanability. While ensuring high salt rejection performance, it reduces energy consumption during operation and extends the cleaning cycle.
Product Model | Effective Area ft2 (㎡) | Inlet Flow Channel Width (mil) | Water Production gpd (m³/d) | Stable Salt Rejection Rate (%) |
HQ-RO-4040FR | 82 (7.6) | 34 | 2400 (9.1) | 99.7 |
HQ-R0-8040FR | 400 (37.2) | 34 | 11000 (41.6) | 99.7 |
1. The water production and salt rejection rate are obtained based on the following standard test conditions: 2000 ppm NaCl, 225 psi (1.55 MPa), 77 ℉ (25 ℃), pH 8, 15% recovery rate.
2. The variation range of water production is +/-15%.
Maximum Operating Temperature | 45℃ |
Maximum Operating Pressure | 600psi (41 bar) |
Maximum Pressure Drop | 1bar |
Continuous Operating pH Range | 3 - 10 |
Cleaning pH Range | 1 - 12 |
Maximum Inlet Flow SDI15 | 5 |
Maximum Influent Turbidity | 1NTU |
Maximum Residual Chlorine Concentration of Influent Water | <0.1ppm |
A wide flow channel reduces the probability of membrane fouling and improves the cleaning effect.
The chemically stable and cleanable membrane ensures long-term, reliable operation.
The TFC (Thin Film Composite) surface is coated with a super anti-pollution layer, which has excellent anti-pollution performance and a long service life.
The membrane has a high permeability and lower energy consumption.
Wastewater treatment and reuse, high-purity water preparation;
Food and pharmaceutical fields: food processing, pharmaceutical applications;
Municipal and resource development: seawater desalination, drinking water purification.
