Industrial Filter Cartridges

1. Efficient filtration and treatment capacity;

2. Economy and convenient maintenance;

3. Wide application scenarios;

4. Environmental protection and intelligence.

The core working principle of industrial high-flow filter cartridges is based on physical sieving, interception, and adsorption mechanisms, combined with multi-layer filter material structure and optimized design, to achieve high-flow treatment and efficient filtration.

The maintenance of industrial high-flow filter cartridges should focus on pressure differential monitoring, surface inspection, and water quality testing. The specific measures are as follows:

1. Pressure difference monitoring

Install a pressure difference gauge to record the pressure difference change between the inlet and outlet in real time. When the pressure difference is close to 2-3 times the initial value (or reaches the set threshold, such as 2-3 bar), the filter cartridge must be replaced immediately to avoid unplanned shutdown.

2. Surface inspection

Regularly observe the pollution of the outer surface of the filter cartridge (such as color change, impurity adhesion). If the pollution is obvious and the pressure difference does not reach the replacement standard, there may be damage or seal failure, and the filter cartridge needs to be replaced in advance.

3. Water quality testing

Monitor the produced water quality indicators (such as turbidity and particle count). If the water quality deteriorates and the replacement standard has not been met (or the pressure differential does not reach the replacement standard), it indicates that the filter cartridge may be damaged or the filtration efficiency has decreased, and inspection must be performed immediately.

4. Cleaning and replacement

Cleanable filter cartridges (such as PP melt-blown, metal sintered filter cartridges) need to be backblown with compressed air or soaked in neutral cleaning agents and then rinsed; disposable filter cartridges (such as PP filter cartridges) must be replaced when the pressure difference exceeds 0.1MPa or after 3-6 months of use.‌

Industrial filter cartridges are replaceable filtration elements used to remove particles, suspended solids, colloids and other impurities from liquids or gases. They are widely used in water treatment, RO pretreatment, process water filtration, chemical filtration, gas purification, cooling water systems and wastewater reuse projects. In many systems, filter cartridges help protect membranes, pumps, valves and downstream equipment from contamination or blockage.

To choose the right filter cartridge for water treatment, first confirm the application, water quality, target particle size, required micron rating, flow rate, operating pressure and temperature. Then check the cartridge material, length, diameter, end cap type and sealing material to ensure compatibility with the existing filter housing. For RO pretreatment, PP pleated or high-flow cartridges are often used. For fine filtration or special chemical conditions, PES, PTFE or corrosion-resistant cartridges may be more suitable.

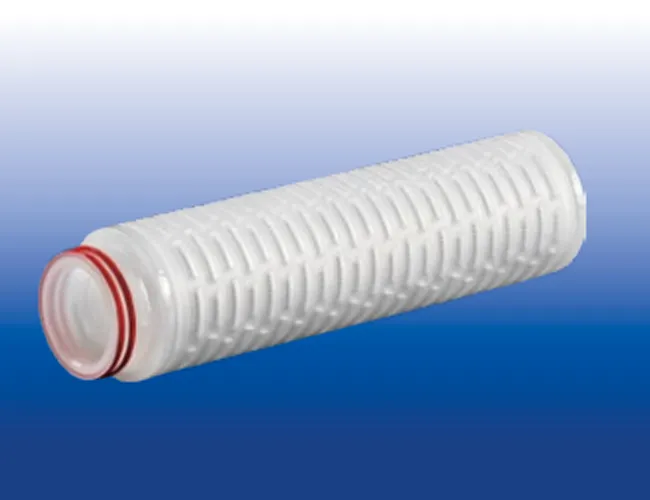

PP filter cartridges are commonly used for general water treatment and industrial liquid filtration because they are cost-effective and have good dirt-holding capacity. PES filter cartridges are suitable for fine filtration where high flow, low extractables and stable filtration precision are required. PTFE filter cartridges offer stronger chemical resistance and are often used for corrosive liquids, solvents, gases and vent filtration. The right choice depends on the fluid type, filtration accuracy, temperature and chemical compatibility requirements.

For RO pre-filtration, the micron rating is usually selected based on feed water quality and the protection requirements of the RO membrane. In many industrial systems, 1 micron to 5 micron cartridges are commonly used before RO membranes to reduce particles and suspended solids. However, the final selection should depend on turbidity, SDI value, flow rate and upstream treatment process. Huaqiang can help recommend a suitable micron rating based on your project conditions.

An industrial filter cartridge should be replaced when the pressure differential reaches the recommended limit, the system flow rate drops significantly, the outlet water quality becomes unstable, or the cartridge has reached its expected service life. Replacement frequency depends on feed water quality, contaminant load, operating time, flow rate and cartridge type. Regular monitoring of pressure differential and filtration performance helps prevent blockage and protects downstream equipment.

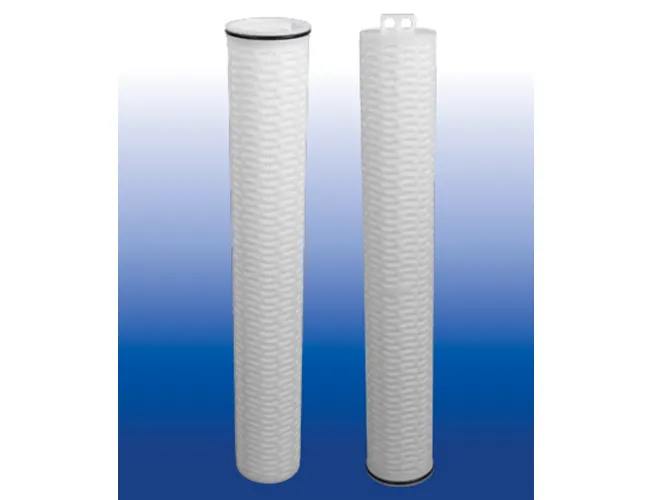

High-flow filter cartridges are designed to handle large flow rates with fewer cartridges compared with standard cartridge systems. They can help reduce the number of filter housings, simplify installation, lower pressure drop and decrease replacement frequency. For large-scale water treatment, RO pretreatment, cooling water and power plant applications, high-flow cartridges can improve system efficiency and reduce maintenance workload.

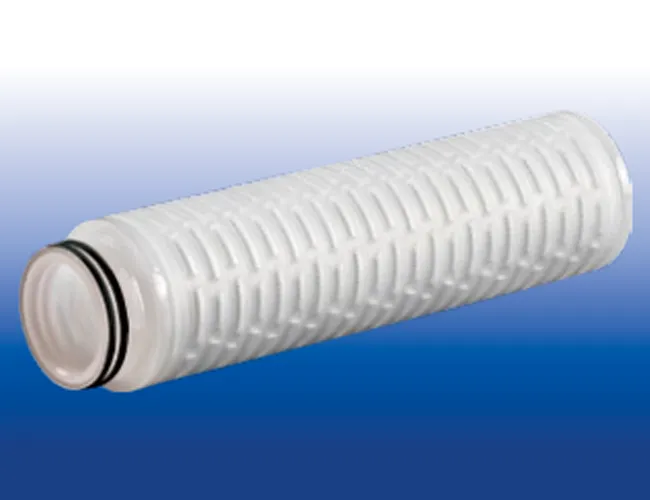

PTFE filter cartridges are suitable for many corrosive liquids, solvents and aggressive chemical conditions because PTFE has strong chemical resistance. Hydrophilic PTFE cartridges can be used for liquid filtration, while hydrophobic PTFE cartridges are often used for gas and vent filtration. For high-temperature or highly corrosive fluids, perfluorinated or PFA/PTFE-structured cartridges may be recommended. The final selection should be based on chemical composition, concentration, temperature and operating pressure.

Yes. Huaqiang can support filter cartridge selection and customization according to specific housing requirements. Customers can provide the existing housing model, cartridge length, outer diameter, end cap type, sealing material, micron rating, flow rate and application details. Based on this information, Huaqiang can recommend suitable cartridge models or provide customized filtration solutions for industrial water treatment and process filtration systems.

Before requesting a quote, please provide the liquid or gas type, application, operating temperature, pressure, flow rate, required micron rating, cartridge length, end cap type, sealing material, housing model and required quantity. If the cartridge is used as a replacement, photos or drawings of the existing cartridge can also be helpful. The more complete the information, the faster Huaqiang can recommend the right product and provide an accurate quotation.

Yes. Huaqiang supplies industrial filter cartridges for bulk purchasing, project supply and OEM filtration requirements. Available options include PP pleated filter cartridges, PES filter cartridges, PTFE filter cartridges, high-flow filter cartridges and corrosion-resistant filter cartridges. For distributors, engineering companies and industrial water treatment projects, Huaqiang can provide product selection support, technical specifications and quotation assistance based on order quantity and application requirements.
