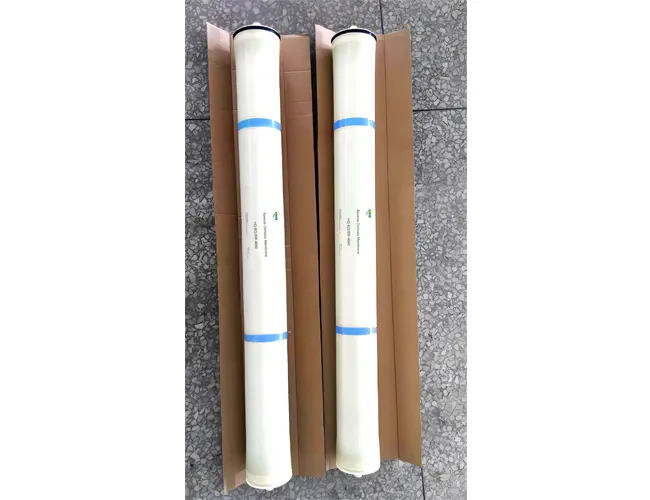

The HQ-RO/BW reverse osmosis (RO) membrane is a spiral-wound polyamide composite RO membrane element. Its unique anti-fouling membrane technology endows it with excellent anti-pollution capability and cleanability. While ensuring high salt rejection performance, it reduces energy consumption during use and extends the cleaning cycle.
Product Model | Effective Area ft2 (㎡) | Inlet Flow Channel Width (mil) | Water Production gpd (m³/d) | Stable Salt Rejection Rate (%) |
HQ-RO/BW-2540 | 28 (2.6) | 32 | 750 (2.8) | 99.3 |
HQ-RO/BW-4021 | 36 (3.3) | 32 | 1000 (3.8) | 99.3 |
HQ-RO/BW-4040 | 85 (7.9) | 32 | 2600 (9.8) | 99.3 |
HQ-RO/BW-8040 | 400 (37.2) | 32 | 10500 (39.7) | 99.3 |
HQ-RO/BW-8040 | 440 (40) | 28 | 12500 (47.3) | 99.3 |
1. The water production and salt rejection rate are obtained based on the following standard test conditions: 2000 ppm NaCl, 225 psi (1.55 MPa), 77 ℉ (25 ℃), pH 8, 15% recovery rate.
2. The variation range of water production is +/-15%.
Maximum Operating Temperature | 45℃ |
Maximum Operating Pressure | 600psi (41bar) |
Maximum Pressure Drop | 1bar |
Continuous Operating pH Range | 2-11 |
Cleaning pH Range | 1-13 |
Maximum Inlet Flow SDI15 | 5 |
Maximum Influent Turbidity | 1NTU |
Maximum Residual Chlorine Concentration of Influent Water | <0.1ppm |
The special microorganism-inhibiting coating reduces membrane biofouling.
The chemically stable and cleanable membrane ensures long-term, reliable operation.
The TFC (Thin Film Composite) surface is coated with a super anti-pollution layer, which has excellent anti-pollution performance and a long service life.
The membrane has a high permeability and lower energy consumption.
Wastewater treatment and reuse, high-purity water preparation;
Food and pharmaceutical fields: food processing, pharmaceutical applications;
Municipal and resource development: seawater desalination, drinking water purification.
