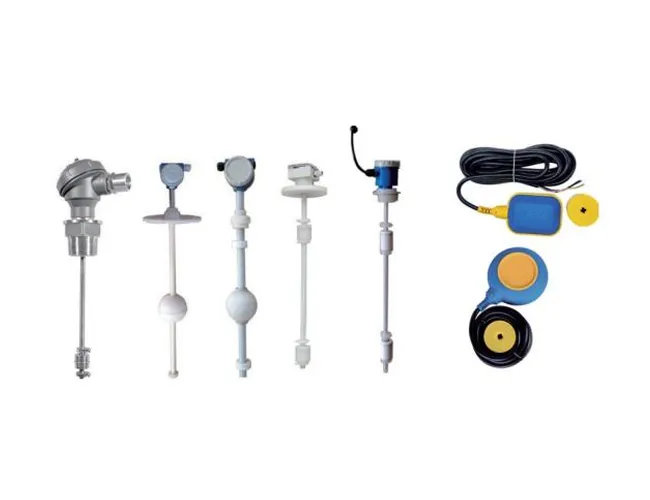

Float Level Meter

Name: Float Level Meter
Brand: Zhejiang Huaqiang Environmental Technology Co., Ltd.

The linkage float level meter is composed of a float and an insertion rod. It is installed on the top of the container through a connecting flange. The float floats on the liquid surface according to the principle of equal displaced liquid volume. When the liquid level of the container changes, the float also moves up and down. Due to magnetic action, the reed switch of the float level meter is magnetically attracted, converting the liquid level position into an electrical signal. The display instrument uses a digital display to show the actual position of the liquid, so as to achieve remote detection and control of the liquid level.

Get Free Quote

Specifications of Float Level Meter

Conventional Technical Parameters
Measurement range	300～6000mm
Basic error	±1%FS
Power supply	24V DC
Output	Digital input, 4~20mA two-wire system
Accuracy	Standard ±10mm, ±5mm
Pressure grade	≤10Mpa
Protection class	IP65
Explosion-proof grade	DⅡBT4
Wetted material	Various materials such as SUS304, SUS316L, PP, PTEE
Connection method	Various connections, such as flange, thread, and clamp
Technical Parameters with Remote Transmission
Measurement range	0-15000mm
Accuracy	+10mm
Hysteresis	+10mm
Output signal	4-20m A.DC
Maximum remote transmission distance	3Km; Maximum capacitance and inductance of laid cable: no more than 0.04 μF and 2mH
Power supply voltage	24V DC, 220V AC 50Hz (the float level meter is equipped with a 24V DC regulated power supply)
Ambient temperature	-40℃ ~ +60℃
Ambient vibration	Frequency ≤25Hz, amplitude ≤0.05mm
Load impedance	2500Ω
Explosion-proof hose interface	M20*1.5 internal thread
Power consumption	< 1.0W
Explosion-proof type and marking	Inspected and qualified by the Explosion-proof Quality Supervision and Inspection Center of Electrical Instruments of the Ministry of Chemical Industry. Explosion-proof marking: dⅡbT4.

Dimension Drawings

1) Outline dimensions of the level meter

water filter media factory

Flange size, number of floats, and length L are specified by the customer

2) Float outline dimension (parameters are for reference only, subject to the actual product)

Specification (Outer Diameter × Height × Middle Hole) (mm)	Specific Gravity	Pressure Resistance (MPa)	Weight (g)	Material	Temperature Resistance (℃)
Φ24×24L×Φ9.5	≥0.85	1	7	SUS	200
Φ24×28L×Φ9.5	≥0.85	1	7	SUS	200
Φ28×28L×Φ9.5	≥0.75	1	8	SUS	200
Φ45×55L×Φ15	≥0.6	1.5	36	SUS	200
Φ28×Φ28×Φ9.5	≥0.85	3	7	SUS	200
Φ52×Φ52×Φ15	≥0.55	3	40	SUS	200
Φ75×Φ75×Φ23	≥0.55	3	137	SUS	200
Φ19×18×Φ8	≥0.55	0.5	3	PP	80
Φ23.5×21×Φ9	≥0.55	0.5	5	PP	80
Φ25×25×Φ9.5	≥0.55	0.5	8	PP	80
Φ63×67×Φ21	≥0.6	0.5	129	PP	80
Φ45×55×Φ21	≥0.65	0.5	45	PP	80

Applications of Float Level Meter

The float level meter is widely suitable for continuous measurement of the liquid level (interface) of high-temperature, high-pressure, viscous, dirty media, asphalt, wax-containing oil products, as well as flammable, explosive, and corrosive media.
It can be used for industrial measurement and control of liquid levels in various liquid tanks such as petroleum, chemical raw material storage, industrial processes, biochemistry, medicine, food and beverage, tank farm management, and gas station underground inventory.
It is also suitable for dam water level, reservoir water level monitoring, and sewage treatment, etc.
