High-Performance UF Membrane HQXUF-2880/2860

PVDF material, featuring excellent chemical cleaning resistance and superior oxidation resistance.
High filtration precision, with a nominal pore size of ≤0.03 μm and uniform pore size distribution.
High strength and good toughness of membrane filaments (membrane fiber elongation rate exceeds 100%).
Low pressure and high flux (meets the design flow rate under very low transmembrane pressure difference).
Excellent chemical stability (membrane module performance remains unchanged after 50 cycles of acid-alkali chemical cleaning).
Strong anti-fouling capability (the cleaning cycle is extended by 30%, and the membrane flux recovery effect is good).
External-pressure operation, featuring a strong foulant-holding capacity and wide adaptability to influent water quality.
Standard fitting connection method, greatly improving the convenience of module installation.

Get Free Quote

Specifications of High-Performance UF Membrane HQXUF-2880/2860

Membrane Type	External-pressure hollow fiber
Membrane Material	PVDF (Polyvinylidene Fluoride)
Shell Material	UPVC
Nominal Membrane Pore Size (μm)	<0.03
Inner/Outer Diameter of Membrane Fiber (mm)	0.7x1.3
Specification Model	HQXUF-2860	HQXUF-2880
Module Net Weight + Water Weight (KG)	40+40	50+50
Effective Membrane Area (m²)	55	77

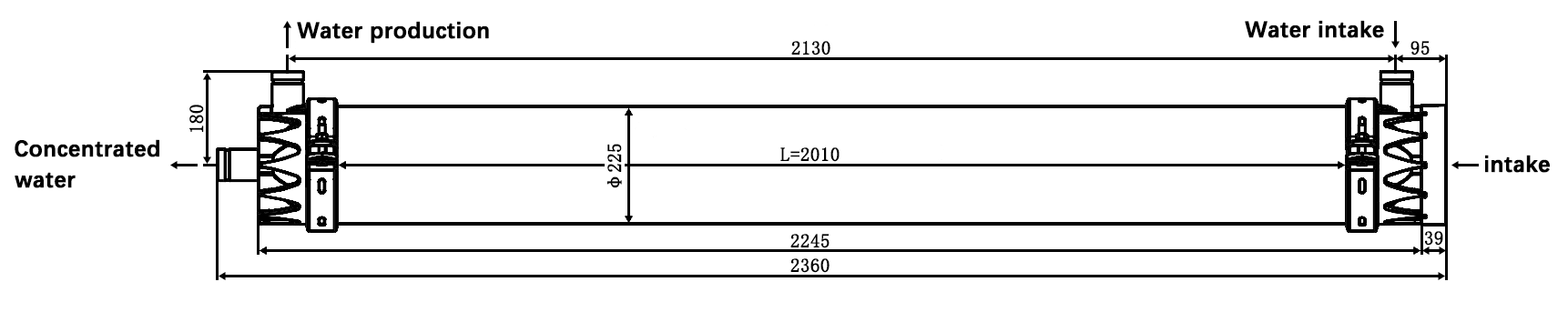

Overall Dimension (mm)	225x1860	225x2360
Inlet/Outlet Diameter	DN50	DN50
Design Flux at 0.1MPa/25℃	3-3.5 m³/h	4-4.5 m³/h
Service Life	3-5 years
Turbidity of The Effluent (NTU)	≤0.1
Effluent Water SDI	<3.0
TOC Removal Rate	20%~60%
pH Range	2~12 (during cleaning1~12)
Maximum Feed Water Turbidity (NTU)	300
Maximum Feed Water Pressure (MPa)	0.5
Filtration Flux Range	40~120 L/(m² ·h) (Select 0.1 MPa according to the Feed Water conditions.)
Maximum Transmembrane Pressure Difference (MPa)	0.2
Operating Temperature Range (℃)	2-45
Maximum Feed Water Residual Chlorine Concentration (mg/L)	200
Maximum Residual Chlorine Concentration in Cleaning Agent (mg/L)	5000
Operation Mode	Dead-end filtration or cross-flow filtration

Note: Special requirements and specification dimensions of the membrane module can be customized according to requirements.

Proper start-up is crucial for the stable operation of ultrafiltration. For ultrafiltration during the commissioning or after a long shutdown period, it is necessary to inspect and calibrate various equipment, instruments and influent water quality before restarting, so as to ensure that all conditions meet the set values or the set values after commissioning. For specific operation steps and precautions, please refer to the product manual.
Under any circumstances, the ultrafiltration membrane components are not allowed to freeze. In special regions or under specific requirements, antifreeze shall be added to ensure transportation safety. For knowledge about antifreeze, please refer to the product manual.
The ultrafiltration membrane module must be used under the operating conditions specified in the product manual. Without the written commitment or notification from Zhejiang Huaqiang Company, any non-rigorous design and use shall be deemed invalid and abandonment of the quality assurance.
Under the condition of poor water quality, the operating flow rate of the ultrafiltration system should be slowly increased to the design value. During the initial commissioning process, the initial flow rate should be set to 50% of the design flow rate and operated for 2~24 hours, especially for wastewater applications.
