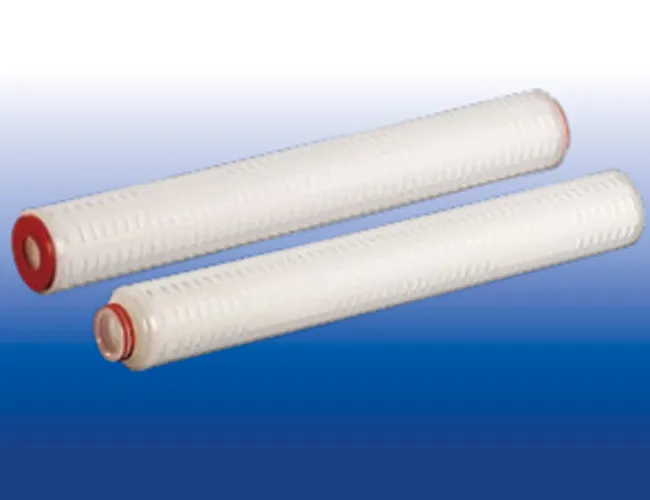

The integrally formed pleated filter cartridge is specially designed for the pretreatment of RO (Reverse Osmosis) systems. The filter membrane material can be selected from deep-layer fine polypropylene and glass fiber. Combined with the integrally formed inner and outer skeleton components, it greatly improves the overall filtration efficiency, flow rate, and dirt-holding capacity, extends the service life of the filter cartridge, and thus ensures the input safety of subsequent equipment.
Outer Diameter | 66mm, 69mm |
Length | 20”, 30”, 40” |
Filter Material | Polypropylene (PP), Glass Fiber (GF) |
Support/Flow Guide Layer | Polypropylene (PP) |
Core/Housing/End Cap | Polypropylene (PP) |

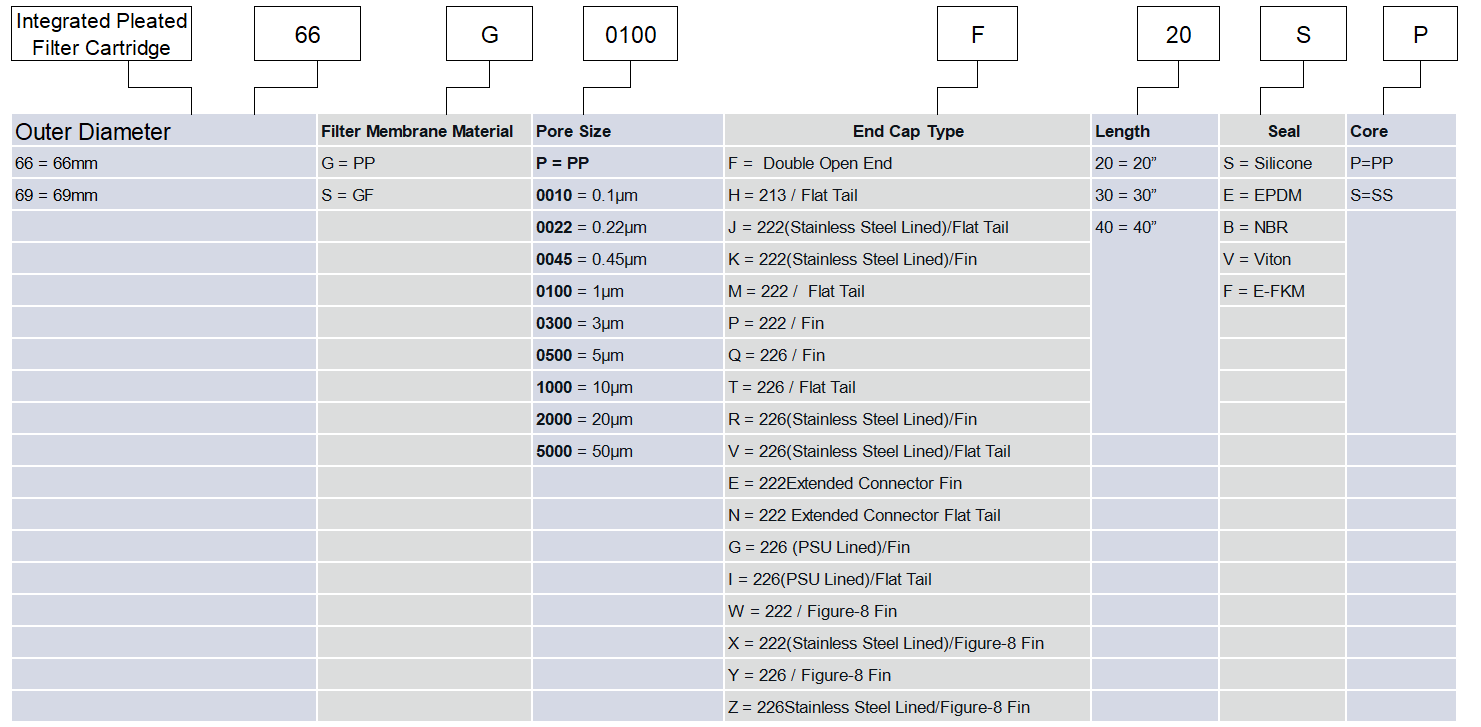

| Seal Ring | See Order Information Selection Table |
Maximum Operating Temperature | 80℃ |
| Maximum Operating Pressure Differential | 1.5 Bar @ 80℃ |
The core and housing are of an integral structure, ensuring consistent and stable length.
Large filtration area and high dirt-holding capacity.
Low pressure drop and long service life.
Deep-layer filtration with high flux.
Integrally formed to reduce the risk of leakage.
Food and beverage filtration.
Water filtration in the mining industry.
Water filtration in the petrochemical industry.
Drinking water filtration.
