The HQP series high-flow filter cartridges are equipped with pull-handles on both ends, facilitating easy installation and removal from either side of the housing. Featuring a large 6" diameter and a single-open-end design, these high-flow cartridges are engineered to reduce the number of cartridges and filter housings required for applications with high flow rate demands, significantly cutting down on capital expenditure. Utilizing a depth filtration media composed of fine polypropylene fibres as the primary filtration layer, they are available in a variety of construction types and micron ratings to adapt to diverse application requirements.

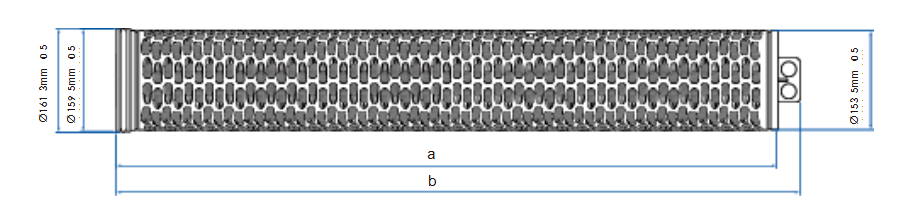

Outer Diameter | 154mm |
Length | 20”, 40”, 60” |
| Filtration Area | 6.33m² (E)/5.37m² (N)/3.92m² (A)/5.32m² (GF) |
Filter Material | Polypropylene (PP), Glass Fiber (GF) |
Support | Polypropylene (PP) |
| Skeleton | Polypropylene (PP) |
Maximum Operating Temperature | 80℃ |
| Maximum Operating Pressure Differential | 2.4 bar@20℃ |
Large filtration area and high flux;
Double-handle design for easy access from both ends of the filter;
Multiple precision options;
Produced in a clean workshop, ensuring cleanliness.
General Purpose: Pre-filtration for reverse osmosis systems
Industrial: Filtration of process water, condensed water, cooling water, wastewater, etc.
Chemical/Chemical Industry: Filtration of various acids, alkalis, solvents, quench water, brine, etc.
Power Plant: Filtration of condensed water, etc.
