Utilizing folded polypropylene filter membranes, the HQPK series achieves a maximum filtration capacity of 1,300 L/min, effectively reducing the number of filter cartridges and housings required.
Deep-fine membrane materials and a multi-layer gradient aperture filtration structure are utilized to achieve a higher dirt-holding and dust-holding capacity.
Outer Diameter | 154mm |
| Length | 20”, 40” |
Filter Material | Polypropylene (PP) |
Core/Housing/End Cap | Polypropylene (PP) |
| Sealing Ring | See Order Information Selection Table |
Maximum Operating Temperature | 80℃ |
Maximum Operating Pressure Differential | 2.5 Bar@20℃ |
| Recommended Replacement Pressure Differential | 2.2 Bar@20℃ |
Multiple process and precision options for wide application;
Pure PP material with good chemical compatibility;
High efficiency, low pressure drop, and high dirt-holding capacity;
Safe filter cartridge materials.
General Purpose: Pre-filtration for reverse osmosis systems, purification of various process water;
Industrial: Filtration of process water, condensed water, cooling water, wastewater, etc.
Chemical/Chemical Industry: Filtration of various acids, alkalis, solvents, quench water, brine, etc.
Power Plant: make-up water, condensed water, stator cooling water, etc.

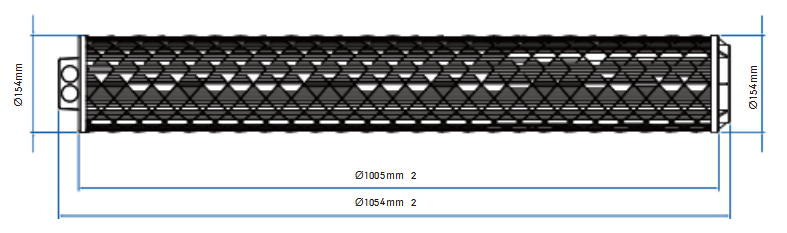

Standard Connector

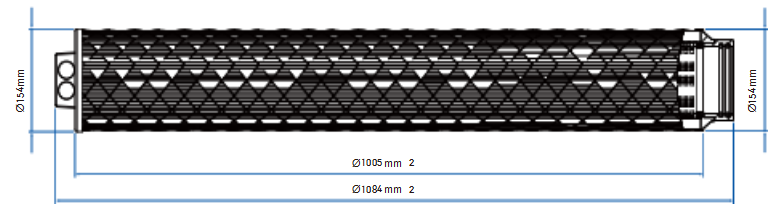

Extended Connector (Single Groove)
Extended Connector (Double Grooves)
