Industrial MBR Membrane Curtain HQ-U-H-10/15/20

Industrial MBR Membrane Curtain HQ-U-H-10/15/20

Name: Industrial MBR Membrane Curtain HQ-U-H-10/15/20
Brand: Zhejiang Huaqiang Environmental Technology Co., Ltd.

Membrane Bio-Reactor (MBR) is a new type of water treatment technology that combines a membrane separation unit with a biological treatment unit.

Get Free Quote

Specifications of Industrial MBR Membrane Curtain HQ-U-H-10/15/20

HQ-MBR Membrane Model and Performance

	Effective Membrane Area	10㎡	15㎡	20㎡

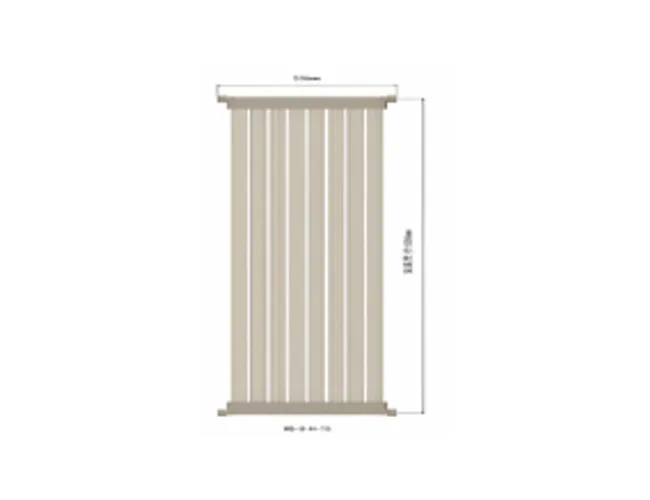

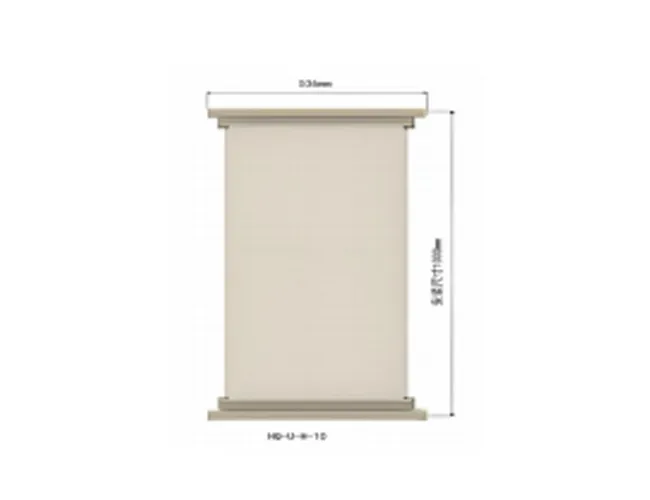

	Specification (Width × Thickness × Height)	536 ×47 × 1000mm	536 ×47 × 1500mm	536 ×47 ×2000mm
	Inner and Outer Diameter of Membrane Fiber	1.0/2..0mm
Component parameters	Filtration Precision	0.1μm
	Membrane Shell Material	UPVC or ABS
	Membrane Material	Polyvinylidene Fluoride (PVDF)/Polyester (PET) Support Tube
	Water Collecting Pipes at Both Ends	Outer Diameter 40mm, Inner Diameter 32mm
	Filtration Method	Submerged Negative Pressure Suction Filtration
	Operating Membrane Flux	15-22 L/(㎡•h)
Operating Conditions	PH Range	2～12
	Applicable Temperature Range	8～45℃
	Operating Pressure	-0.01～0.05 MPa
	Recommended Operating Cycle	Producing water for 8 minutes, then stopping for 2 minutes.

1. For different water qualities, the designed membrane flux will vary greatly. Users could conduct sufficient tests or consult our company.

2. L/(㎡•h) refers to the water output of 1 square meter of MBR membrane per hour, with the unit being liter (e.g., 20 L/(㎡•h) means 20 liters of water output per square meter per hour).

Product Performance Characteristics of Industrial MBR Membrane Curtain HQ-U-H-10/15/20

The membrane fiber is made of polyvinylidene fluoride (PVDF), a material that possesses excellent chemical properties. The material itself offers good anti-fouling performance, and after hydrophilic treatment, its surface is highly resistant to fouling and clogging.
Comprehensive Mechanical Performance: The membrane fiber has high tensile strength, high elongation, and good toughness, with a tensile strength of ≥200N.
High Interception Rate: The 0.1 μm membrane pore structure not only removes bacteria but also eliminates more organic matter, significantly improving the quality of the effluent water.
Long Service Life: With advanced design concepts and manufacturing technology, the product has basic properties such as high pollution resistance, high strength, high interception rate, and high water production. Its service life can reach more than 3 years.
Good and Stable Effluent Quality: The membrane can intercept almost all microorganisms, especially those that are difficult to precipitate and have a slow reproduction rate. As a result, the biological phase in the system is greatly enriched, and the process of acclimatization and proliferation of activated sludge is significantly shortened.
Application Fields: Municipal sewage treatment, industrial wastewater treatment, aquaculture wastewater treatment, resource recovery and reuse, and medical and special wastewater treatment.
