PES Pleated Filter Cartridge

Name: PES Pleated Filter Cartridge
Brand: Zhejiang Huaqiang Environmental Technology Co., Ltd.

The PES filter cartridge is a polyethersulfone (PES) sterilizing filter cartridge that can remove more bacteria and particles under conditions of high flow rate and low pressure drop. The advanced hot-melt welding process ensures the integrity of the filter cartridge. The polyethersulfone membrane with highly consistent porosity and interception efficiency endows the filter cartridge with excellent chemical compatibility and extremely low Soluble substances, making it suitable for most terminal sterilizing filtration in the pharmaceutical industry.

Get Free Quote

Specifications of PES Pleated Filter Cartridge

Structural Materials

Filter Material	Polyethersulfone Membrane (PES)
Flow Guide Layer	Polypropylene

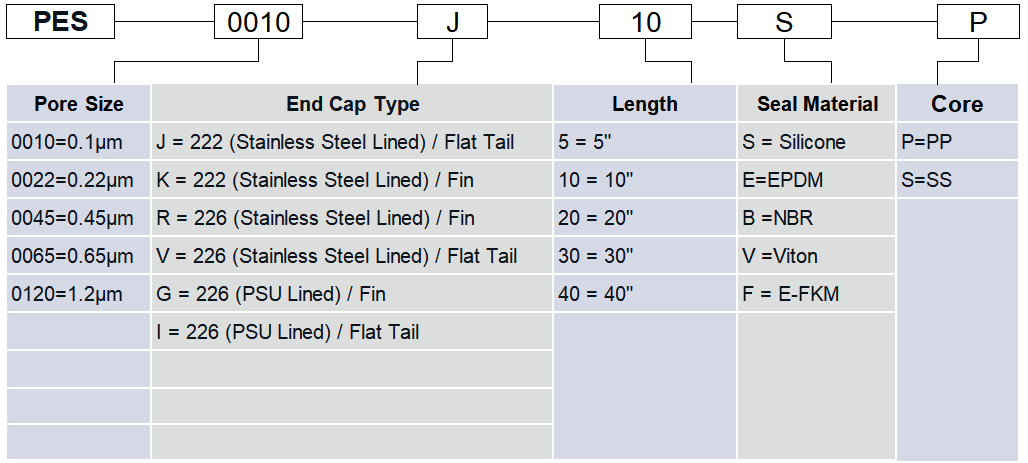

Core/Housing/End Cap Seal Ring	Refer to the Filter Cartridge Selection Table

Product Specifications

External Diameter	69mm
Length	5”, 10”, 20”, 30”,40”

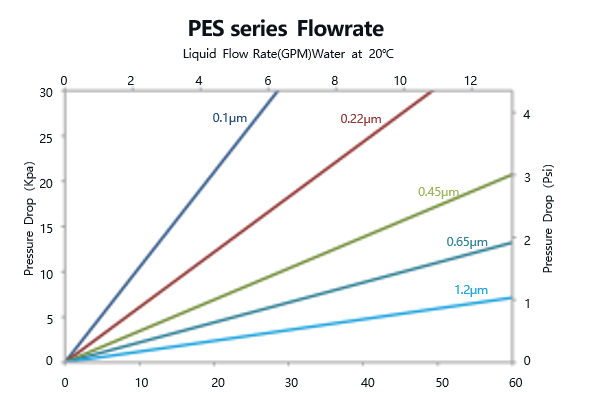

Product Performance

Technical Parameters:
Maximum Operating Temperature	80℃
Maximum Operating Pressure Differential	Forward 4.0 Bar @ 20℃; Forward 2.0 Bar @ 80℃
Sterilization Method:
Autoclaved Sterilization	125℃, 30 Minutes, 30 Cycles
Sterilize in Place	125℃, 30 Minutes, 30 Cycles
Bacteria Retention:
0.22µm	LRV≥7, brevundimonas bullata
Filtration Area:
Ø 69mm	0.65m²/10” Filter Cartridge
Soluble Substances:
Per 10” Filter Cartridge	<20mg

Integrity Test

Pore Size (μm)	Bubble Point (BP) ≥ (Water)	Diffusion Flow ≤ (10” Ø 69mm)
0.1µm	4880mbar	25ml/min@3900mbar
0.22µm	3200mbar	25ml/min@2760mbar
0.45µm	2100mbar	25ml/min@1700mbar
0.65µm	1320mbar	12ml/min@1100mbar

Product Features of PES Pleated Filter Cartridge

Highly durable PES membrane and PP components, which can be repeatedly sterilized.
Unique hydrophilicity facilitates the wetting test
Free of foreign substances such as adhesives and binders
100% integrity testing during the manufacturing process

Application Fields of PES Pleated Filter Cartridge

Drinking water treatment
RO security filtration
Commercial drinking water treatment systems
Small and medium-sized complete water treatment equipment
Sterilization filtration of water-based liquid materials.

Product Guarantee of PES Pleated Filter Cartridge

All filter cartridges are produced in a Class 100,000 clean environment
Strict implementation the ISO9001:2015 quality management system
Each filter cartridge has a unique serial number, enabling full process traceability
100% integrity test
